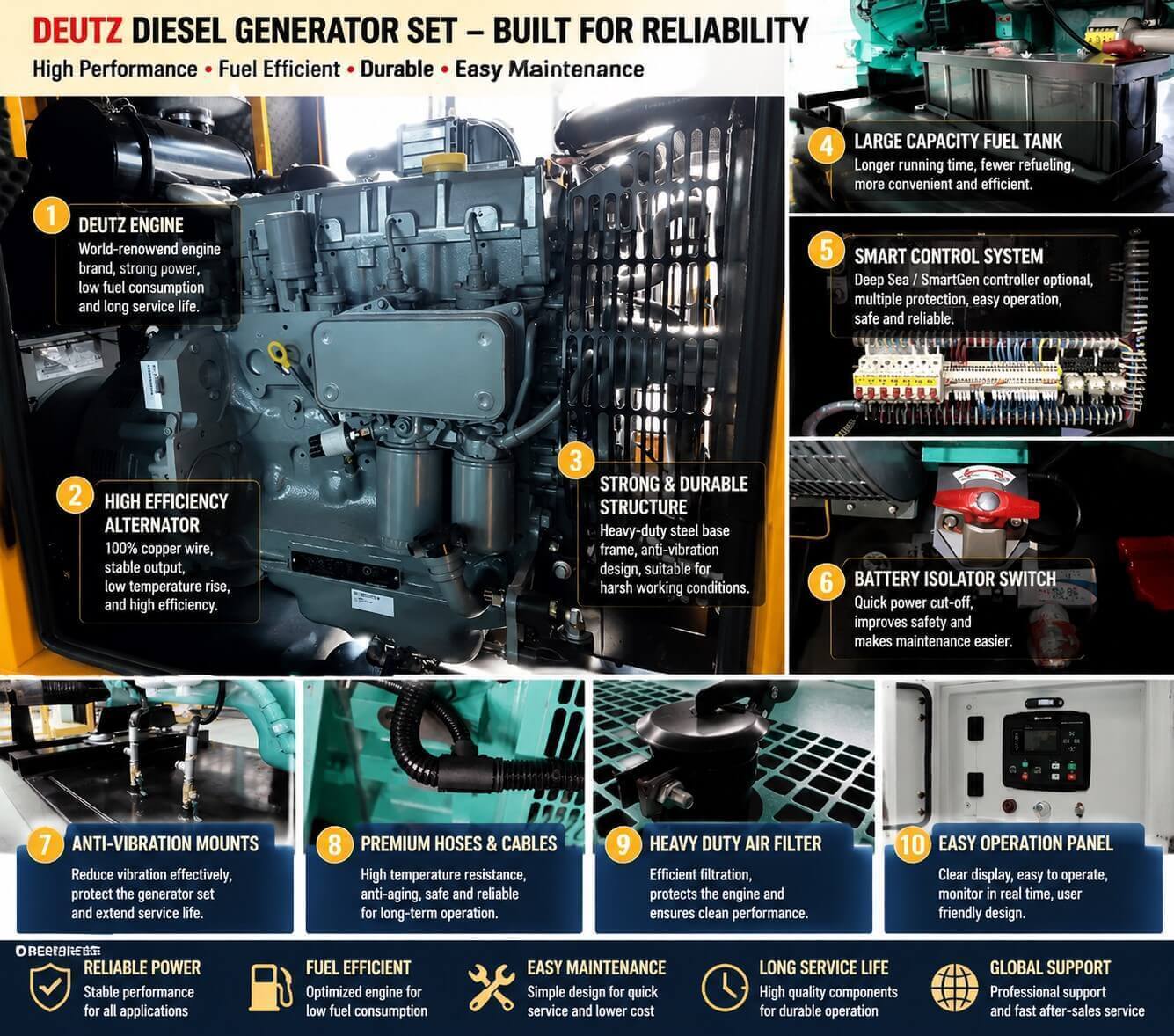

The DEUTZ Powered diesel generator set is a high-quality, fuel-efficient and durable power solution designed for industrial, commercial, and emergency backup applications.
Powered by world-renowned DEUTZ AG engines, this generator series delivers stable performance, low fuel consumption, and long service life.
Engine Brand: DEUTZ
Power Range: 12kW – 1760kW
Type: Diesel Generator Set (Silent / Open Type available)
Cooling System: Water-cooled
Starting Method: Electric start
Frequency: 50Hz / 60Hz optional
Voltage: Customized (220V–480V or higher)
DEUTZ Powered Series Silent Type Gensets Configuration Table:
No. | GENSET | Prime Power | Standby Power | Engine | Cylinder | Displacement | Bore*Stroke | Fuel Consumption | Dimension | ||
KVA | KW | KVA | KW | DEUTZ | (nos) | (L) | (mm) | (g/kw·h) | mm | ||
AIR-COOLED DEUTZ SERIES | |||||||||||
1 | LW-DY12 | 13 | 12 | 14 | 13 | F2L912 | 2L | 1.88 | 100×120 | ≤238 | 2200×1000×1530 |
2 | LW-DY20 | 22 | 20 | 24 | 22 | F3L912 | 3L | 2.828 | 100×120 | ≤232 | 2200×1000×1530 |
3 | LW-DY30 | 32 | 30 | 35 | 33 | F4L912 | 4L | 3.77 | 100×120 | ≤228 | 2200×1000×1530 |
4 | LW-DY36 | 40 | 36 | 44 | 39 | F4L912T | 4L | 3.77 | 100×120 | ≤228 | 2400×1000×1530 |
5 | LW-DY40 | 44 | 40 | 48 | 44 | BF4L913 | 4L | 4.086 | 102×125 | ≤218 | 2400×1000×1530 |
6 | LW-DY45 | 56 | 45 | 61 | 49 | F6L912 | 6L | 5.655 | 100×120 | ≤228 | 2400×1000×1530 |
7 | LW-DY50 | 62 | 50 | 68 | 55 | F6L912T | 6L | 5.655 | 100×120 | ≤228 | 2400×1000×1530 |
8 | LW-DY75 | 82 | 75 | 90 | 82 | BF6L913 | 6L | 6.128 | 102×125 | ≤220 | 3000×1200×1740 |
9 | LW-DY90 | 100 | 90 | 110 | 99 | F8L413F | 8V | 12.763 | 125×130 | ≤217 | 3000×1200×1740 |
10 | LW-DY100 | 110 | 100 | 121 | 110 | F8L413F | 8V | 12.763 | 125×130 | ≤217 | 3000×1200×1740 |
11 | LW-DY120 | 132 | 120 | 145 | 132 | BF8L513 | 8V | 12.763 | 125×130 | ≤215 | 3000×1200×1740 |
12 | LW-DY150 | 165 | 150 | 181 | 165 | BF8L513C | 8V | 12.763 | 125×130 | ≤215 | 3300×1400×1940 |
1 | LW-DY90 | 97 | 90 | 106.7 | 99 | BF4M1013EC | 4L | 4.764 | 108×130 | ≤206 | 3000×1200×1740 |
2 | LW-DY100 | 125 | 100 | 137.5 | 110 | BF4M1013FC | 4L | 4.764 | 108×130 | ≤209 | 3000×1200×1740 |
3 | LW-DY130 | 162 | 130 | 178.2 | 143 | BF6M1013EC | 6L | 7.146 | 108×130 | ≤198 | 3000×1200×1740 |
4 | LW-DY150 | 187 | 150 | 205 | 165 | BF6M1013FCG2 | 6L | 7.146 | 108×130 | ≤202 | 3300×1400×1940 |
5 | LW-DY165 | 206 | 165 | 226 | 181 | BF6M1013FCG3 | 6L | 7.146 | 108×130 | ≤226 | 3300×1400×1940 |
6 | LW-DY180 | 225 | 180 | 247 | 198 | BF6M1015-GA | 6V | 11.906 | 132×145 | ≤205 | 3300×1400×1940 |
7 | LW-DY200 | 250 | 200 | 275 | 220 | BF6M1015C-G1A | 6V | 11.906 | 132×145 | ≤203 | 3300×1400×1940 |
8 | LW-DY200 | 250 | 200 | 275 | 220 | BF6M1015C-LA G1A | 6V | 11.906 | 132×145 | ≤215 | 3300×1400×1940 |
9 | LW-DY220 | 275 | 220 | 302 | 242 | BF6M1015C-LA G2A | 6V | 11.906 | 132×145 | ≤215 | 4000×1800×2300 |
10 | LW-DY250 | 313 | 250 | 344 | 275 | BF6M1015C-LA G3A | 6V | 11.906 | 132×145 | ≤215 | 4000×1800×2300 |
11 | LW-DY300 | 375 | 300 | 412 | 330 | BF6M1015C-LA G4 | 6V | 11.906 | 132×145 | ≤215 | 4000×1800×2300 |
12 | LW-DY300 | 375 | 300 | 412 | 330 | BF6M1015CP-LA G | 6V | 11.906 | 132×145 | ≤215 | 4000×1800×2300 |
13 | LW-DY350 | 437 | 350 | 480 | 385 | BF8M1015C-LA G1A | 8V | 26.56 | 132×145 | ≤205 | 4300×2100×2500 |
14 | LW-DY360 | 450 | 360 | 495 | 396 | BF8M1015C-LA G2 | 8V | 26.56 | 132×145 | ≤205 | 4300×2100×2500 |
15 | LW-DY400 | 500 | 400 | 550 | 440 | BF8M1015CP-LA G1A | 8V | 26.56 | 132×145 | ≤205 | 4500×2100×2600 |
16 | LW-DY420 | 525 | 420 | 577 | 462 | BF8M1015CP-LA G2 | 8V | 26.56 | 132×145 | ≤205 | 4500×2100×2600 |
17 | LW-DY550 | 687 | 550 | 755 | 605 | TBD616V12G2 | 12V | 53.11 | 170×195 | ≤200 | 4700×2100×2600 |
18 | LW-DY600 | 750 | 600 | 825 | 660 | TBD616V12G3 | 12V | 53.11 | 170×195 | ≤200 | 6000×2300×2930 |
19 | LW-DY660 | 825 | 660 | 907 | 726 | TBD616V12G4 | 12V | 53.11 | 170×195 | ≤200 | 6000×2300×2930 |
20 | LW-DY700 | 880 | 700 | 968 | 770 | TBD616V16G1 | 12V | 53.11 | 170×195 | ≤200 | 6000×2300×2930 |
21 | LW-DY750 | 937 | 750 | 1030 | 825 | TBD616V16G2 | 16V | 70.8 | 170×195 | ≤198 | 6000×2300×2930 |
22 | LW-DY880 | 1100 | 880 | 1210 | 968 | TBD620V12G1 | 16V | 70.8 | 170×195 | ≤198 | 6000×2300×2930 |
23 | LW-DY1100 | 1375 | 1100 | 1512 | 1210 | TBD620V12G2 | 12V | 53.11 | 170×195 | ≤200 | / |
24 | LW-DY1200 | 1500 | 1200 | 1650 | 1320 | TBD616V12G1 | 12V | 53.11 | 170×195 | ≤200 | / |
25 | LW-DY1320 | 1650 | 1320 | 1815 | 1452 | TBD620V12G3 | 12V | 53.11 | 170×195 | ≤200 | / |
26 | LW-DY1500 | 1875 | 1500 | 2062.5 | 1650 | TBD620V16G1 | 16V | 70.8 | 170×195 | ≤198 | / |
27 | LW-DY1600 | 2000 | 1600 | 2200 | 1760 | TBD620V16G2 | 16V | 70.8 | 170×195 | ≤198 | / |
28 | LW-DY1760 | 2200 | 1760 | 2420 | 1936 | TBD620V16G3 | 16V | 70.8 | 170×195 | ≤198 | / |
Stable performance under heavy load conditions, suitable for continuous operation.
DEUTZ engines are known for optimized combustion and low fuel consumption.
Optional silent canopy reduces noise for urban and residential applications.
Modular structure design allows quick servicing and reduced downtime.
High-quality components ensure durability in harsh working environments.
This generator set is widely used in:
Construction sites
Industrial factories
Mining operations
Hospitals & emergency backup
Data centers
Commercial buildings
Oil & gas projects
This generator set is widely used in:
Construction sites
Industrial factories
Mining operations
Hospitals & emergency backup
Data centers
Commercial buildings
Oil & gas projects
